BMW 20d › B47 engine

BMW B47 · 2.0 diesel · 2014 on

BMW B47 Stage 1 Remap

The B47 is the 2.0 diesel in every BMW 18d and 20d since it replaced the N47, from the F30 LCI 320d to today’s G60 520d. A 190bhp car comes out at around 230bhp and 500Nm, mapped on our own 4WD dyno.

230BHPfrom 190bhp

500NMfrom 400Nm

£449Stage 1, inc VAT

Book Your Tune Find Your Car ↓

★★★★★ 4.9 from 256+ Google reviews
xDrive-safe 4WD dyno
Same day, about 2 hours
Tuning BMWs for 14+ years

Built before 2014? See the N47 →

The gains

What Stage 1 does to a 190bhp B47

No hardware, no visual changes and every factory emissions system left in place, so the car stays fully MOT compliant. These are typical figures for a healthy, standard car on our dyno.

Power+21%

Standard

190bhp

Stage 1

230bhp

Torque+25%

Standard

400Nm

Stage 1

500Nm

Find your car

Every B47 car we tune

Tap your car to book it with the details already filled in. Prices are inc VAT; the gearbox figure is our xHP software on top, for automatic cars.

F-series

2014–2019

118dF20 / F21 LCI · 2015–2019~~150~~ → 190bhp · 400Nm£449 · + xHP £325Book →120dF20 / F21 LCI · 2015–2019~~190~~ → 230bhp · 500Nm£449 · + xHP £325Book →220dF22 / F23 · 2015 on~~190~~ → 230bhp · 500Nm£449 · + xHP £325Book →320dF30 / F31 / F34 LCI · 2015–2019~~190~~ → 230bhp · 500Nm£449 · + xHP £325Book →420dF32 / F33 / F36 · 2015–2020~~190~~ → 230bhp · 500Nm£449 · + xHP £325Book →520dF10 / F11 · 2014–2017~~190~~ → 230bhp · 500Nm£449 · + xHP £325Book →X3 xDrive20dF25 · 2014–2017~~190~~ → 230bhp · 500Nm£449 · + xHP £325Book →X4 xDrive20dF26 · 2014–2018~~190~~ → 230bhp · 500Nm£449 · + xHP £325Book →

G-series

2017 on

Front-wheel-drive B47s, such as the F40 118d and 120d, the 2 Series Gran Coupé and Active Tourer, X1 and X2, are tuned too: check your car for its figures. Stage 2 takes most 190bhp cars to around 240bhp and 520Nm: what it needs depends on the car, so ask us.

Prices

What it costs

Stage 1 Custom Dyno Tune

£449

Around two hours. No hardware needed.

Health check and fault scan before anything is touched
Map written live on our xDrive-safe 4WD dyno
Before and after dyno printout
Your original file saved, fully reversible

Book Stage 1

Stage 1 + xHP Gearbox

£649F-series

£709 on G-series Save £125

Everything in Stage 1
Quicker, firmer ZF shifts with less hesitation
Torque limits raised to match the new map
Engine and gearbox done in the same visit

Book Engine + Gearbox

Built from June 2020? Add £100 for the same-day ECU unlock, done on our own bench. Finance available

How your day works

In for a couple of hours, driven home tuned

Every B47 goes on our V-Tech 4WD linked dyno. It is mechanically linked, so xDrive cars run as they were built, with nothing unplugged and no torque figures over-read.

Health check and fault scan before anything is touched

Strapped down on our V-Tech 4WD linked dyno

Mapped live, run by run, with your printout at the end

The engine

The B47, briefly

Capacity: 1995cc
Layout: Inline four, turbo diesel
Built: 2014 on
Power: 150bhp (18d), 190–197bhp (20d)
ECU: Bosch MD1CS001 (MD1CS115 on the G60 520d)
Gearbox: ZF 8HP automatic or manual
Our Stage 1: 230bhp · 500Nm (369 lb-ft)
ECU locked?: Cars built from around June 2020

BMW’s B47 replaced the N47 model by model between 2014 and 2016, starting with the F10 520d and the X3, and it has been the 2.0 diesel in every 18d and 20d since. It belongs to the same modular family as the B48 petrol and the six-cylinder B57 diesel. Most 20d versions are rated at 190bhp and the mild-hybrid G60 520d at 197bhp, but they all land in the same place on Stage 1.

Locked ECUsG-series cars built from around June 2020 leave the factory with an encrypted ECU. We unlock it on our own bench, same day, for £100 on top of your tune. Cars built from June 2026 use a newer lock that can’t be opened yet.

G-series B47? Your ECU is probably locked.

That catches a lot of G20 320d, G22 420d, G30 520d and X3 20d owners, and it is why some places turn these cars away. We unlock it here on the bench rather than posting it off. Drop it in, drive it home the same day.

Check Your Reg

Measured on our dyno

B47 results from our own dyno

Customer cars, run on our in-house 4WD dyno in Warrington before and after the map. These are the printed figures, not a file supplier’s estimate.

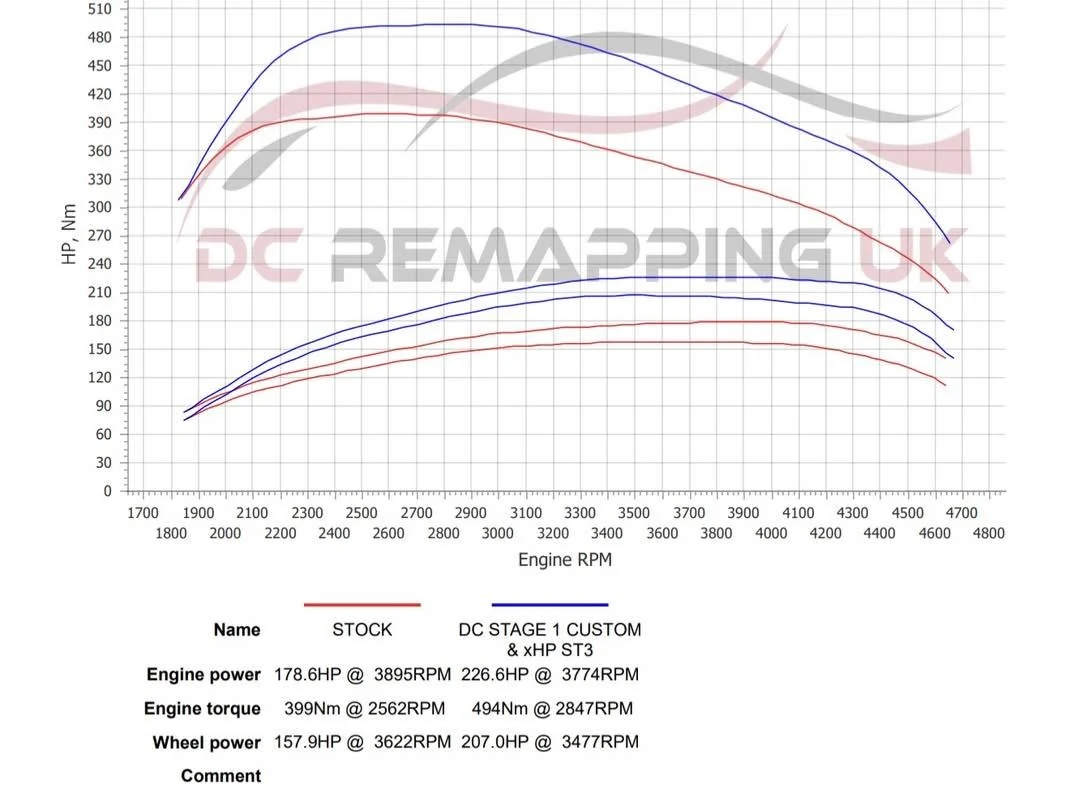

Customer car

BMW 420d Coupé

F32 · B47 2.0 diesel · Stage 1 + xHP ST3

Power~~178.6 →~~ 226.6+48.0 bhp

Torque~~399 →~~ 494+95 Nm

Read the build See all our dyno results

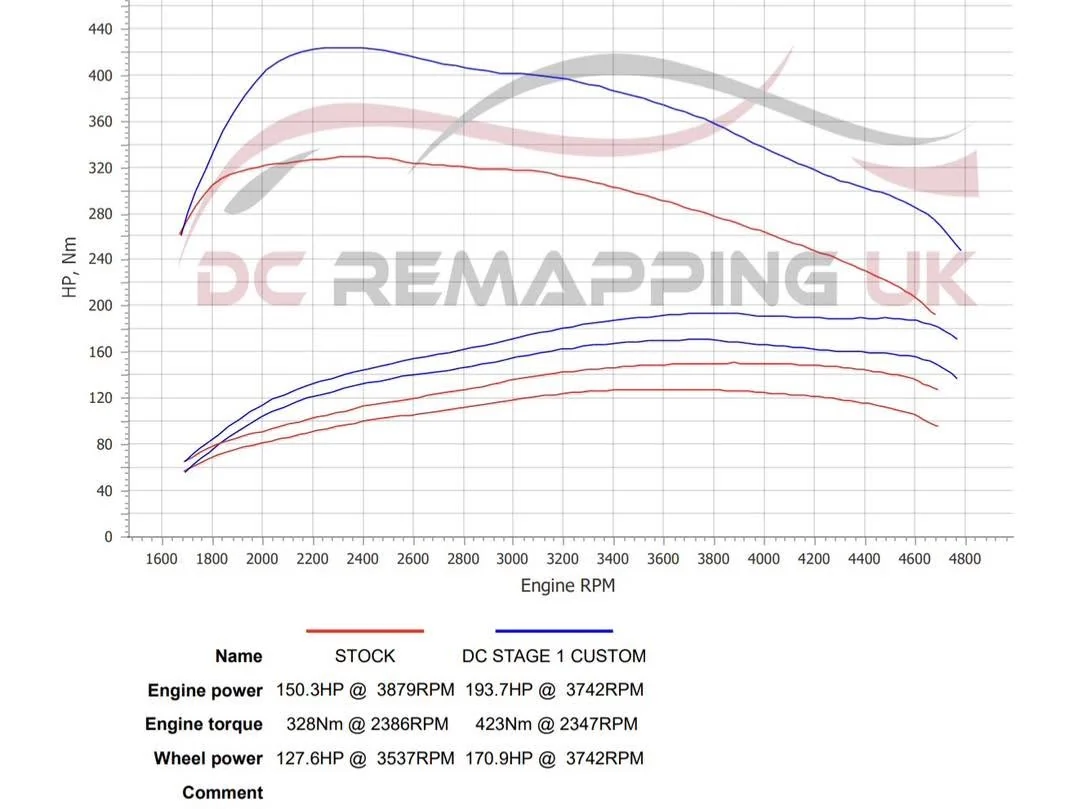

Customer car

BMW 118d

F20 · B47 2.0 diesel · Stage 1

Power~~150.3 →~~ 193.7+43.4 bhp

Torque~~328 →~~ 423+95 Nm

Read the build See all our dyno results

Real B47 owners

What they said on Google

Quoted word for word from our Google reviews.

★★★★★4.9 from 256+ Google reviews

★★★★★

Wow what a result 45hp and almost 100nm increase on my 2018 BMW 520d Xdrive msport touring. They also did the stage 3 XHP ZF gearbox tune aswell …

Mark CarolanBMW 520d Touring, 2018 · Google review

Questions

B47 tuning questions

How much power does a Stage 1 remap add to a B47?

Every 190bhp B47 20d, from an F30 320d to a G30 520d, goes to around 230bhp and 500Nm on Stage 1, and the 197bhp G60 520d lands in the same place. A 150bhp 118d goes to around 190bhp. Our own customer cars: a 420d F32 made 226.6bhp and 494Nm, and a 118d F20 193.7bhp and 423Nm, on our 4WD dyno.

Does my B47 need its ECU unlocking first?

If it was built from around June 2020 onwards, yes. We do it on our own bench the same day, which adds £100 to your tune. Cars built from June 2026 use a newer lock that can’t be opened yet. Check your reg and we will tell you.

Is my 20d an N47 or a B47?

BMW replaced the N47 with the B47 model by model between 2014 and 2016, so the build date matters. Every G-series 20d is a B47. Put your reg into our checker and it will tell you which engine you have and what it makes.

Do you tune the front-wheel-drive B47 cars?

Yes: the F40 118d and 120d, the 2 Series Gran Coupé and Active Tourer, the X1 and the X2. Check your car for its figures and price.

What does gearbox tuning add on top?

On a ZF8 automatic the shift maps were written for standard torque, so once the engine makes more they become the weak link. xHP rewrites them: quicker shifts, less hesitation and a raised torque limit. It is £325 on F-series cars and £385 on G-series.

Will it affect my warranty or insurance?

A remap is a modification, so you need to declare it to your insurer, and it can affect a remaining manufacturer warranty. We save your original file before we touch anything, so the car can go back to standard whenever you need.

BMW B47 Stage 1

Ready to book your B47?

Book online in a couple of minutes: put your reg in and pick a date. Rather talk it through? Call us.

Book Your Tune Call 01925 819002
